The Nebuliser

Pari Boy Classic nebuliser machine (compressor) with LC Sprint nebuliser mouthpiece kit

A nebuliser is a small machine used to deliver your asthma medication in a mist form. It does this by vaporising a liquid form of the drug- the mist is then delivered to you by way of a face mask or mouthpiece.

Taking asthma medication in this way may be more effective in an asthma sufferer who is unable to find an “inhaler” that suits them.

A nebuliser is also very useful when air entry is very impaired during a severe acute attack of asthma or in chronic respiratory conditions such as chronic bronchitis or emphysema, where poor air entry is a major problem.

Nebulisers come in a variety of shapes and sizes, some more portable than others, and can be mains or battery powered.

Asthma Relief donate mainly Pari Boy Classic mains nebuliser compressors and Clement Clarke Life Care face mask/mouthpiece nebulisers kits, usually through the respiratory department of hospitals, hospices or GP surgeries or in some cases, with the managing doctor’s authorisation, directly to the patient.

Click here to see instructions on how to set up and clean a Pari Boy Classic nebuliser: https://www.youtube.com/watch?v=XuSGLmPGNj4

Operating Instructions

1. Carefully withdraw nebuliser from the box.
2. Connect mains lead to a mains power supply.
3. Connect driveline tube to machine.
4. Connect nebuliser chamber, followed by mouthpiece or face mask, to the driveline.
5. Press mains switch on.

Filling the Nebuliser Chamber

Life Care nebulisers kits – For Single Patient Use

For Medix nebuliser machines

1. Connect one end of the driveline to the outlet filter on your compressor. (nebuliser machine)

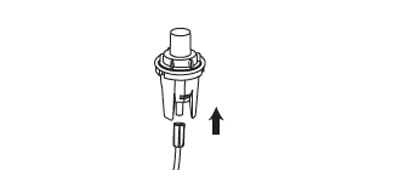

2. Connect the other end of the driveline to the bottom of the blue nebuliser cup.

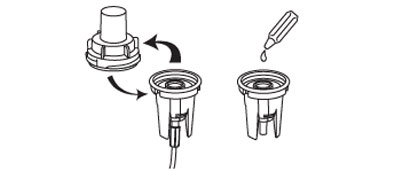

3. Remove the nebuliser top from the cup and pour medication into the cup (max. 10ml.)

4. Ensure blue piece is in the bottom part of the cup

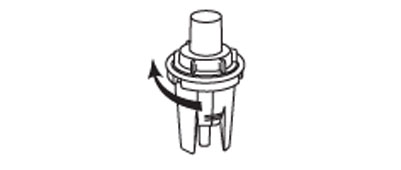

5. Screw the top back onto the cup.

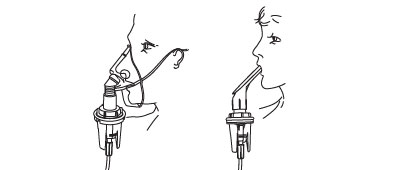

6. Connect either the face mask or mouthpiece to the nebuliser top.

All accessories must comply with EN 13544-1

Administering the Medication

Switch the compressor unit on. Sitting in an upright relaxed position, place mouthpiece into the mouth (or face mask over the nose and mouth) and start breathing slowly and deeply. Do not try to breathe quickly. If you have any problems seek instruction from your doctor or physiotherapy department at your hospital. Switch off the compressor when the misting has stopped. Unplug the mains lead.

Cleaning (Life Care nebuliser kits)

In order that you benefit fully from your equipment, it is important that the machine and accessories are kept in a clean condition. Ensure that the medication chamber is taken apart and washed in warm soapy water. Rinse and allow to dry after each use. The jet holes should be blown clear by attaching the chamber to the air outlet from the compressor and running the machine for a couple of minutes. We advise that the tube is disconnected from both the outlet filter and the chamber after each use to prolong the life of the connector.

Changing the Attachments

It is recommended that the following disposable items should be changed as follows: Nebuliser chamber (medication cup), Driveline (tubes), inlet (white) filter, and Face Mask every 3 months. Mouthpiece and Outlet (Blue) Filter every 12 months. Only nebuliser chambers supplied or approved by CCI should be used with Medix nebulisers.

Replace filters for the Econoneb/Turboneb 2

Inlet filter:

Using the filter spanner, unscrew your used, white, inlet filter in an anti-clockwise direction and discard. Replace with a new filter, ensuring you have the white inlet filter. Screw the white inlet filter, into the left-hand hole on the front panel, in a clockwise direction, tightening with the filter spanner.

Outlet filter:

Using the filter spanner, unscrew your used, blue, outlet filter in an anti-clockwise direction and discard. Replace with a new filter, ensuring you have the blue outlet filter. Screw the blue outlet filter, into the right-hand hole on the front panel, in a clockwise direction, tightening with the filter spanner.

Replace Fuse

1. Switch off at mains.
2. Using a screwdriver or a coin, push and twist fuse in an anti-clockwise direction to extract fuse.
3. Replace with new fuse.

Servicing

Pari nebulisers do not require servicing.  The filter should be replace at least one a year or when it becomes discoloured.

In order to maintain your warranty, on Medix nebulisers,  your nebuliser machine is required to be serviced by an approved service agent every 12 months.

Please contact the manufacturer or distributor for details of your nearest authorised service agent.

Caution: Do not immerse in water.
Please Note: When returning your nebuliser for servicing to Clement Clarke International, please contact customer services for an authorised returns number.
Please do not return your consumables when returning your nebuliser for servicing. The nebuliser case should be wiped clean with an alcohol wipe or similar, before returning for servicing.
Please ensure wipe solution is compatible with ABS plastics.

Nebuliser Care

1. Do not immerse machine in water.

2. Physician prescribed use only.

3. Never use more frequently than prescribed.

4. If therapy is having no effect, consult physician.

5. Use nebuliser machine on a flat, hard and clean surface. Do not use on carpet, sofa or bed.

Troubleshooting

Problem:

Air compressor will not operate when switched on

Action:

If the green light in the mains switch is on, yet the motor does not operate when switched on. function, there is an internal fault. The machine should be returned to the point of purchase or an authorised person for examination.
If the green light(s) on the switches are off:
1. Check mains lead is securely connected each end.
2. For machines with a 3 pin plug (UK) remove and check the fuse in the plug. Fuse – 3.15AL 25mm long.
3. Check mains fuse in the control panel. Fuse – T1AL 20mm long.
4. Disconnect unit from electricity supply. Check mains fuse in the mains inlet socket.

Problem:

Nebuliser chamber bubbles or produces little or no mist. Time taken to nebulise significantly increases.

Action:

1. Check inlet filter. Replace if necessary. (e.g. if discoloured)
2. Wash nebuliser chamber. Replace if problem still occurs.
3.  Ensure blue or clear t-shaped Baffle is inside medication cup. Medication will not vaporise without this.
4. Check driveline tubing is not kinked or leaking. Replace if necessary.
5. Service compressor if applicable.
